Product information "SK 15-10 Scewcompressor"

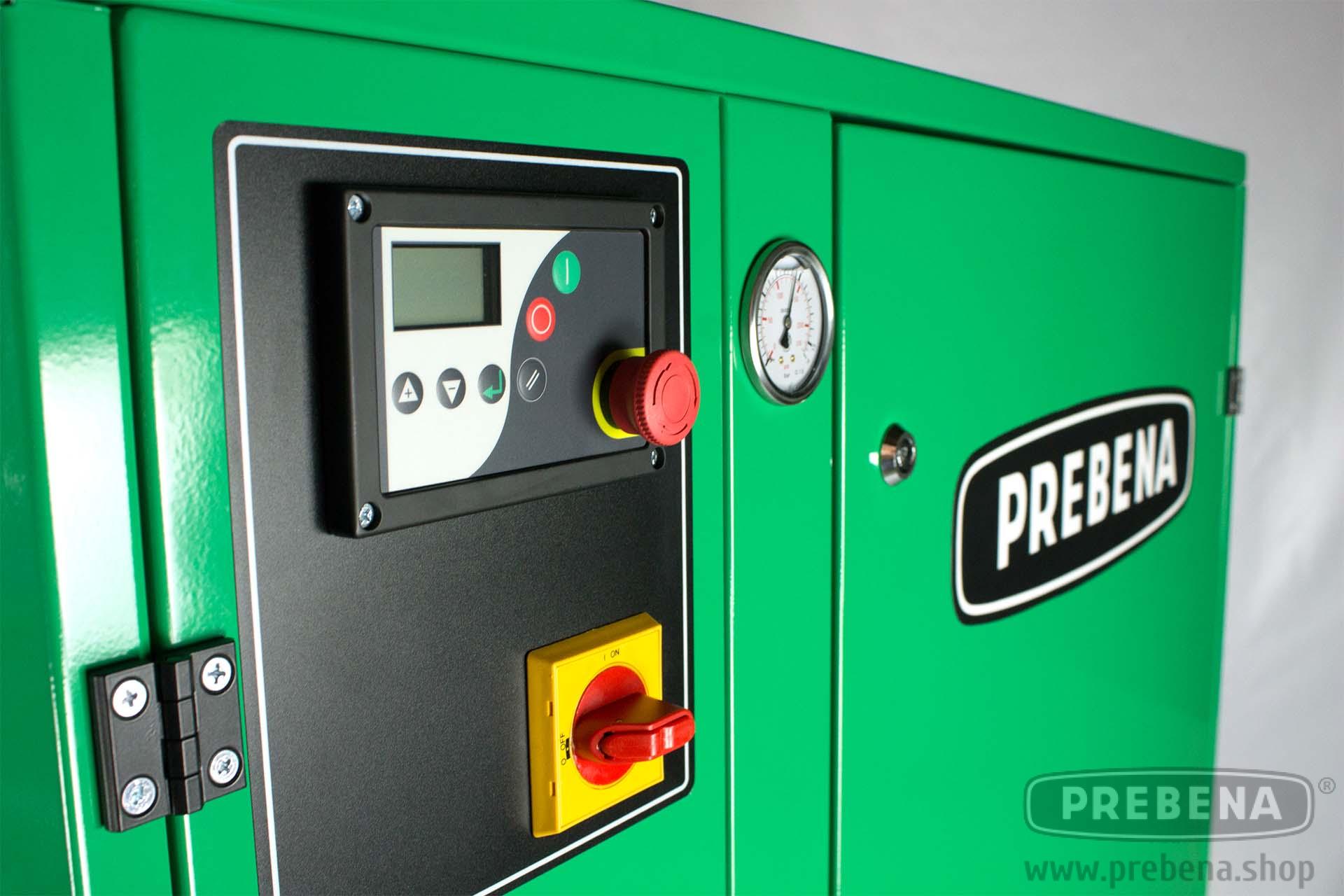

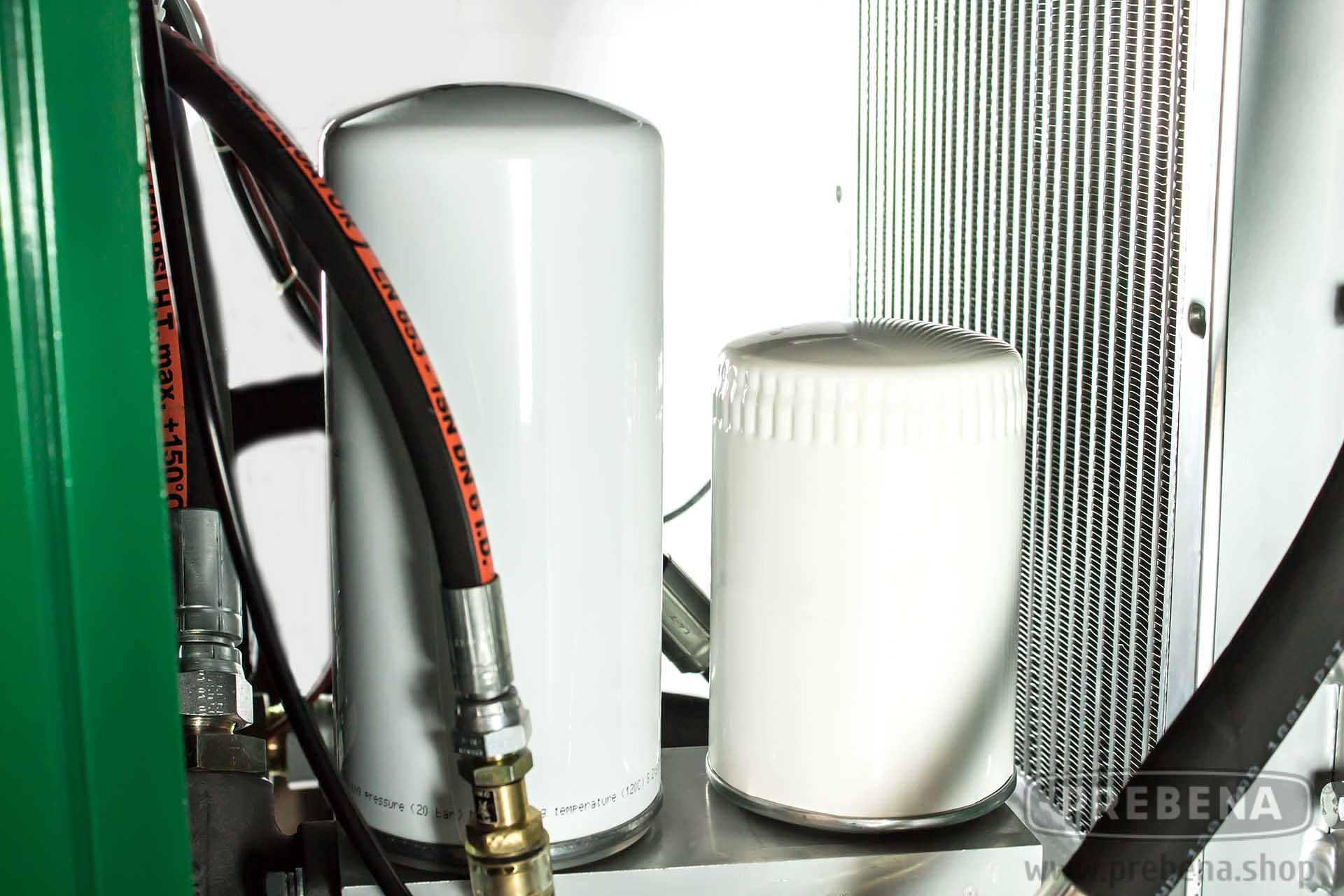

Accoustic housing, pressure vessel, condensate drain ball valve, programmable Computer, LED-Display, emergency shut-down wwitch, star-delta-start up, gauge for tank pressure, temperature monitoring, minimum pressure valve, electromagnetic intake regulator, oil pre-separation, oil separator, oil filter, earth strap, large area honeycomb cooler
Login
Technical details
| 400V 3-phase electrical plug with phase selector: | yes |
|---|---|

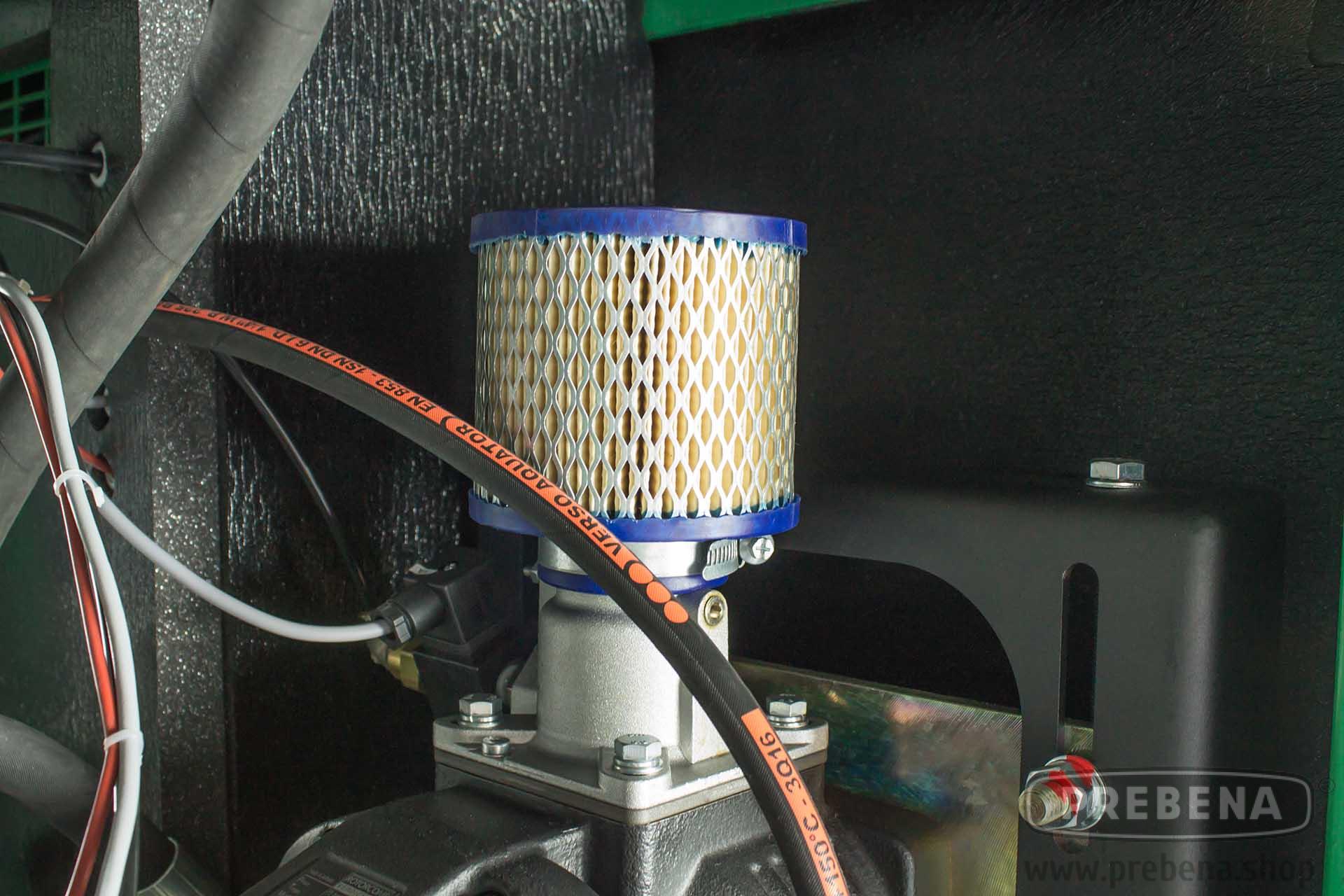

| Air intake filter: | yes |
| Air supply at stopcock: | yes |
| Anti-vibration rubber feet: | yes |
| Bar product finder: | 0-10 |
| CE-electrical connection plug: | yes |
| Drain valve on the pressure vessel: | yes |
| Electrical protection (A): | 29,3 |
| Electromagnetical pressure relief: | yes |
| Filling Capacity (l/min): | 1900 |
| Frequency (Hz): | 50 |
| Incl. automatic star-delta circuit: | yes |
| Intake capacity-product finder: | More than 500 |
| Max. oressure (bar): | 10 |

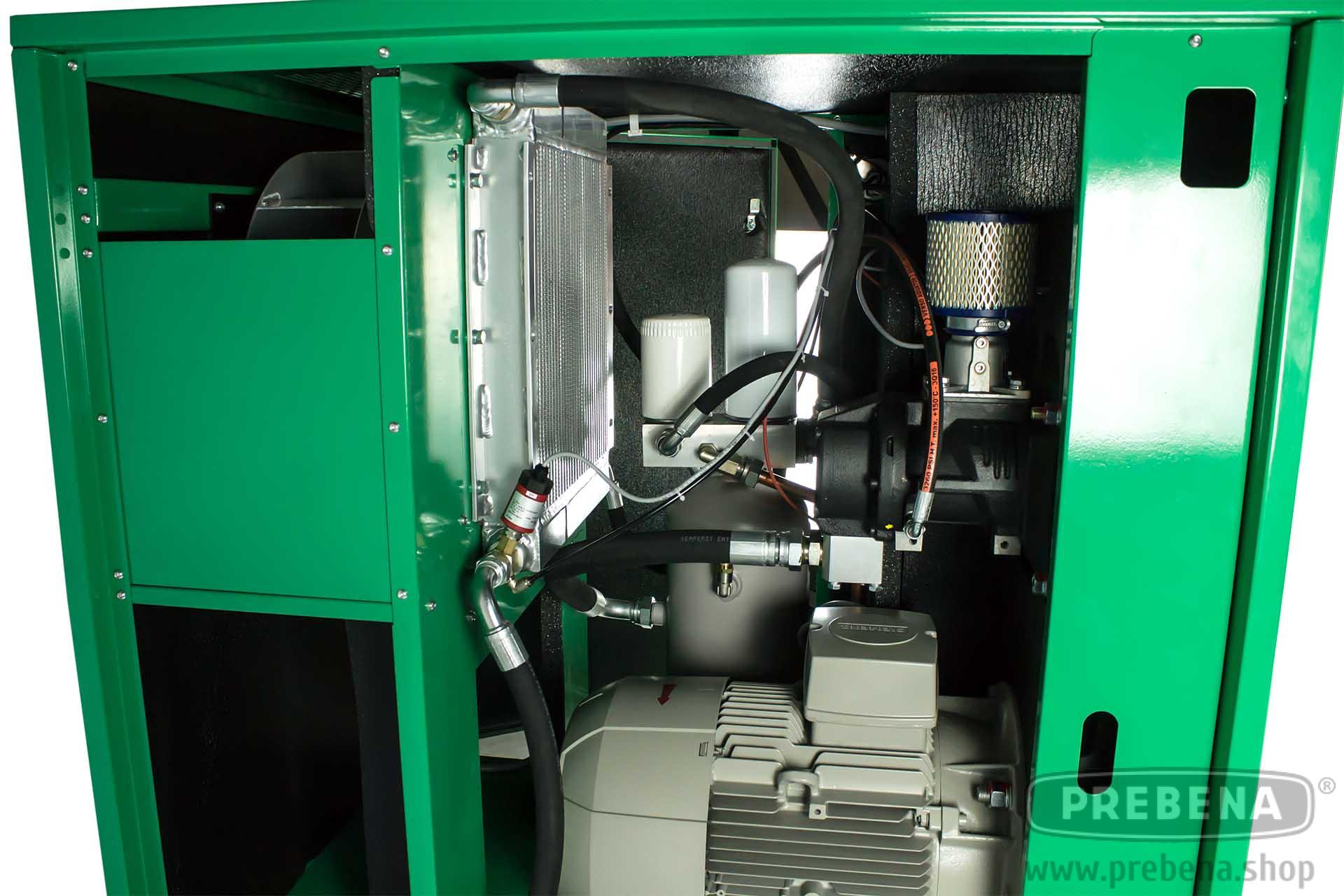

| Motor (kW): | 15,00 |
| Motor circuit breaker: | yes |
| Noise characteristics dB (A): | 80 |
| Oil-free / oil-lubricated: | Oil lubricated |
| Oil sight glass: | yes |
| Pneumatic air connections: | 1 |
| Power cable length: | 4,0 |
| Pressure gauge: | yes |
| Pressure pipe ventilation: | yes |
| Pressure regulator with pressure gauge and quick action coupling: | yes |
| Protective cover for engine: | yes |
| Protective cover for pressure regulator: | yes |
| Quality pressure switch: | yes |
| Speed (rpm): | 6230 |
| Start-up valve with pressure relief: | yes |
| Stationary/Mobile: | Stationary |
| TÜV-certified safety valve: | yes |
| Vessel capacity (l): | 500 |
| Voltage (V): | 400 |
Accessory Items
PLUS-SYSTEM-2300 - Air Conditioning Unit for 2300l (607,59 gal.) /min.
€4,999.00*
€4,200.84 plus VAT
