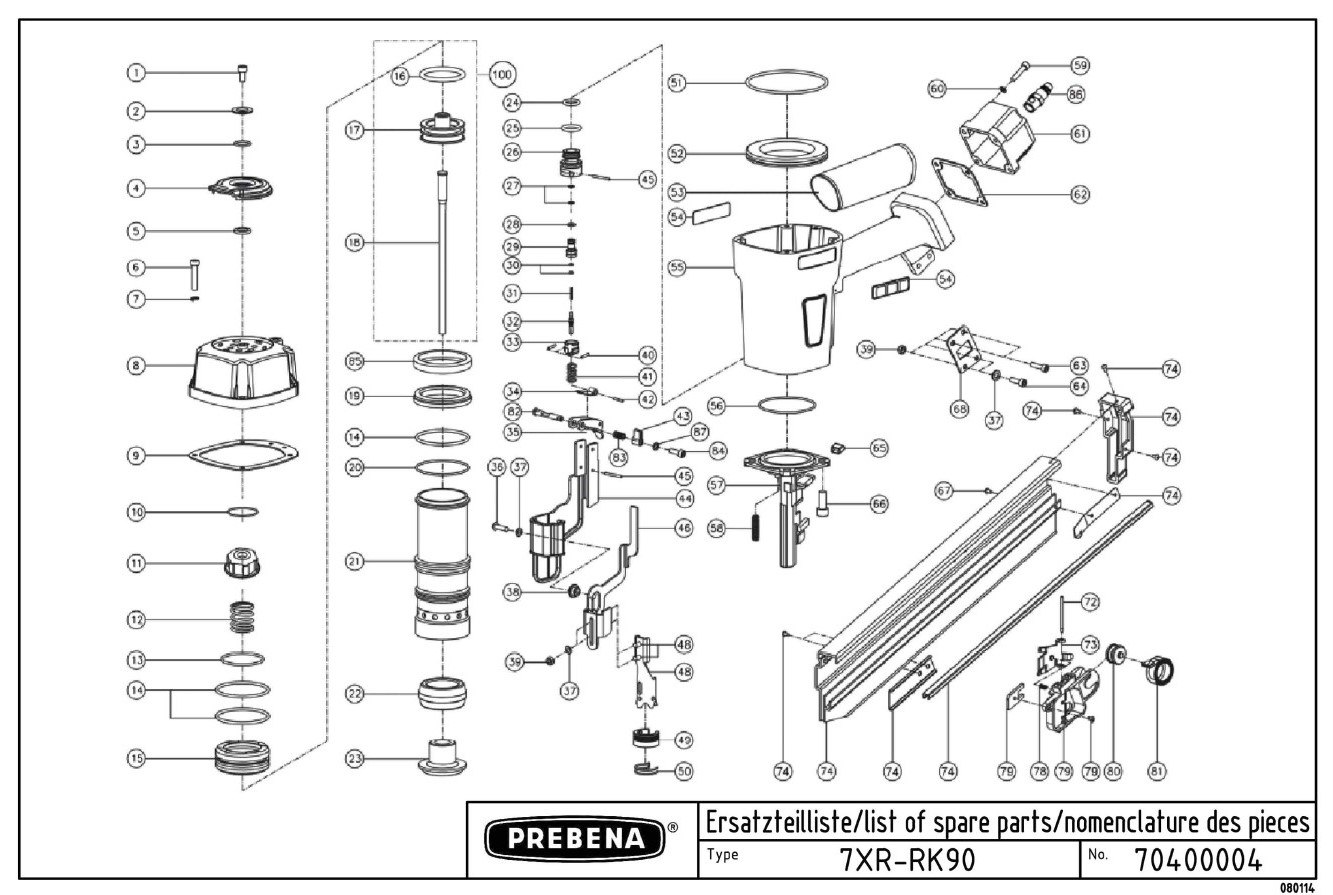

7XR-RK90

position	item	discription	quantity	link
1	ET99300407	countersunk screw	1	to product
2	ET70405001	collar bush	1	to product
3	ET99928201	o-ring	1	to product
4	ET70407201	cover plate, exhaust silencer	1	to product
5	ET70413901	PU-ring	1	to product
6	ET99307102	screw	4	to product
7	ET99100405	spring washer	4	to product
8	ET70400101	head plate	1	to product
9	ET70410801	head sealing	1	to product
10	ET70420801	support ring	1	to product
11	ET70403201	spring support	1	to product
12	ET99622201	spring	1	to product
13	ET99928301	o-ring	1	to product
14	ET99928401	o-ring	3	to product
15	ET70400501	head valve	1	to product
16	ET99930301	o-ring	1	to product
17	ET70400701	piston	1	to product
18	ET70406301	driver (only driver complete)	1	to product
19	ET70405701	valve ring	1	to product
20	ET99928601	o-ring	1	to product
21	ET70400901	cylinder	1	to product
22	ET70401001	bumper	1	to product
23	ET70420301	bumper (inside)	1	to product
24	ET99928701	o-ring	1	to product
25	ET99928801	o-ring	1	to product
26	ET70403401	valve sleeve	1	to product
27	ET99928901	o-ring	2	to product
28	ET99929001	o-ring	1	to product
29	ET70403301	valve tube	1	to product
30	ET99929101	o-ring	3	to product
31	ET99622301	spring	1	to product
32	ET70403501	valve pin	1	to product
33	ET70403601	valve pin guide	1	to product
34	ET70405201	tripping flap	1	to product
35	ET70405401	trigger	1	to product
36	ET99308008	fillister head screw	1	to product
37	ET99100301	washer	5	to product
38	ET70405901	sleeve	1	to product
39	ET99200309	locknut	4	to product
40	ET98902306	parallel pin	2	to product
41	ET99622401	spring	1	to product
42	ET98903803	spring pin	1	to product
43	ET70437601	adjusting button, triggering system	1	to product
44	ET70432001	safety cover	1	to product
45	ET98904603	spring pin	2	to product
46	ET70401401	safety device	1	to product
48	ET70421701	lower safety device	1	to product
49	ET70420901	protective cover	1	to product
50	ET70402201	holding spring	1	to product
51	ET99929201	o-ring	1	to product
52	ET70411701	distance ring	1	to product
53	ET70404201	handle	1	to product
54	ET70427201	protection	2	to product
55	ET70402701	main housing	1	to product
56	ET99929301	o-ring	1	to product
57	ET70412001	base, main housing	1	to product
58	ET99622501	spring	1	to product
59	ET99304402	screw	4	to product
60	ET99100305	spring washer	4	to product
61	ET98860301	reducer	1	to product
62	ET99709501	connection sealing	1	to product
63	ET99303902	screw	2	to product
64	ET99303802	screw	2	to product
65	ET70432601	stopper	1	to product
66	ET99309402	screw	4	to product
68	ET70404001	holder, magazine	1	to product
72	ET70425701	bolt	1	to product
73	ET70402301	pusher	1	to product
74	ET70401901	Magazine complete	1	to product
78	ET99622601	spring	1	to product
79	ET70413201	spring holder	1	to product
80	ET70405301	spring support	1	to product
81	ET99405101	roll spring	1	to product
82	ET70401601	bolt, trigger	1	to product
83	ET99622701	spring	1	to product
84	ET99301702	screw	1	to product
85	ET70400601	holding ring	1	to product
86	ET98800101	nipple	1	to product
87	ET70420501	washer	1	to product
100	ET70405501	driver complete	1	to product
